ML-HAMILTON

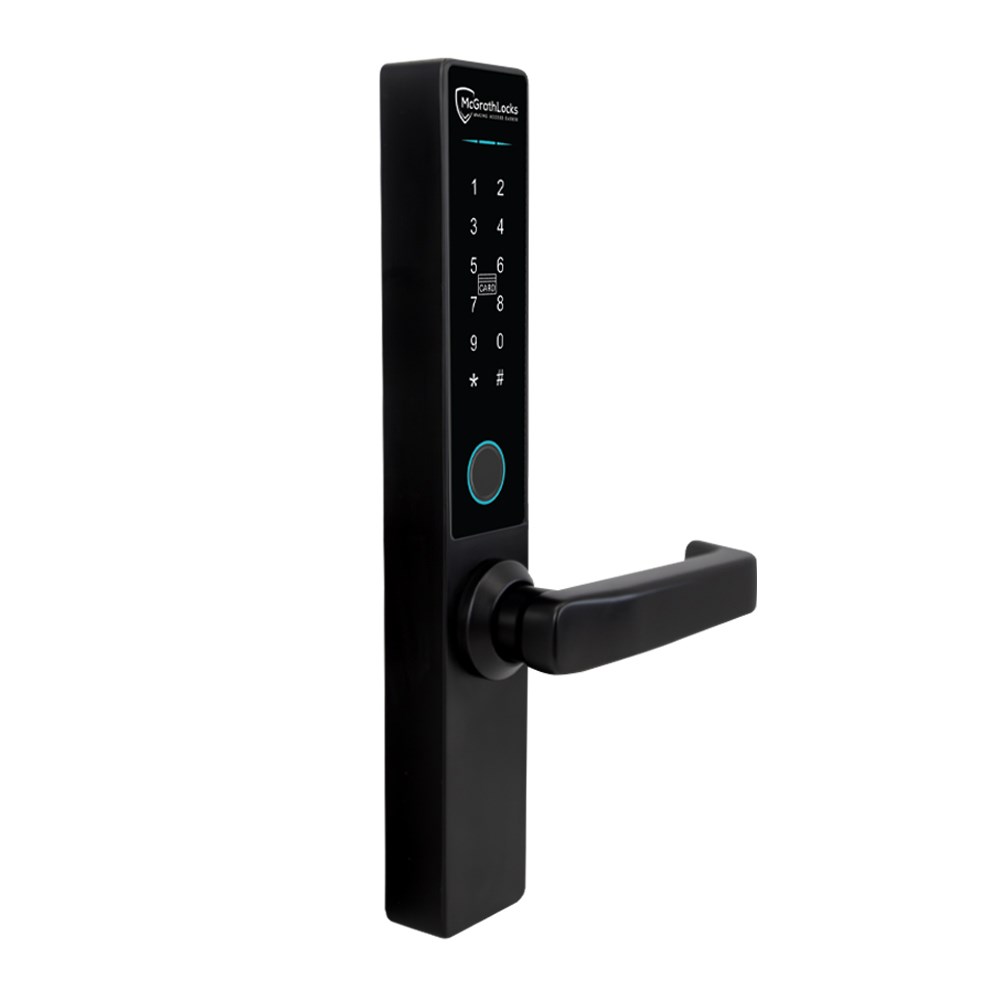

The HAMILTON by McGrath Locks is one of the most versatile digital smart locks available in Australia. It is a 5-in-1 digital smart lock offering keyless entry through PIN codes, RFID access cards or tags, fingerprint recognition, Bluetooth-enabled eKeys, or a mechanical key override. Supplied with an adjustable tubular latch, it is also compatible with most common Australian commercial mortice locks. The lock is fire-rated for up to 2 hours plus, its DDA-compliant lever makes entry effortless for everyone. Easily managed via the McGrath Locks App, you can control access remotely with the optional Wi-Fi gateway. Built with an IP66 weather rating, the HAMILTON provides reliable performance in many different environments. Perfect for both residential and commercial properties, it combines security and convenience.

• Lock Functions
  • Manage lock functions via McGrath Locks App using Bluetooth or Wi-Fi (with optional gateway).
  • Enrol PIN Codes, RFID access cards & tags, Fingerprints, and send eKeys to your family and visitors.
  • Passage Mode can be used to leave your door open when required.
  • Anti-peep code function stops unauthorised people from seeing the correct code inputted.
  • Incorrect attempt lockout after 5 wrong attempts for added security.
  • Reset button can be disabled in the App for additional security.
  • Audit trail within the App to see who accessed your door and when.
  • Mechanical key override option for emergency access.

  Battery & Power

  • Powered by 4 x AA Alkaline batteries (not included).
  • Low battery alert (visible in App and audible at the lock).
  • USB-C port for emergency power access.

  Built to Last

  • Glass screen for extra durability.
  • IP66 weather rated external side for dust and high-pressure water resistance — suitable for outdoor installations where immersion is not expected.

  Installation

  • Field changeable handing for flexible installation.
  • Retrofittable with DDA compliant levers to comply with BCA AS1428.1 -2009 (Levers sold separately).
  • Compatible with most common Australian mortice locks.
  • Suits doors with thickness from 35–54mm.
  • 2-hour fire rating for E-Core and Firecore doors.
  • Supplied with the ATL6070 McGrath Locks 2-hour fire-rated tubular latch.

  Finish

  • Available in black or satin nickel.
